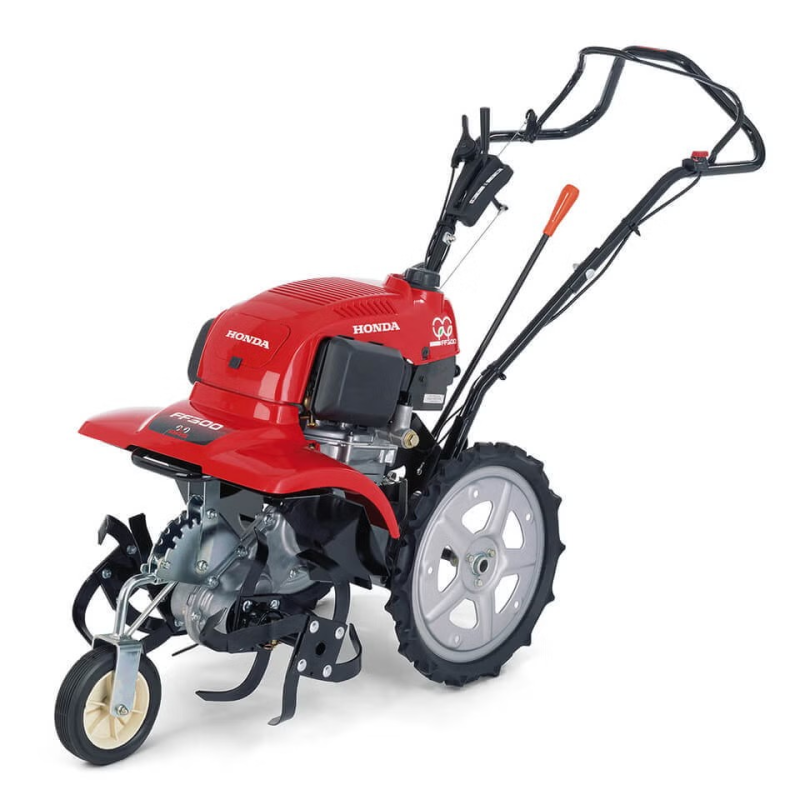

Unparalleled performance for extra large plots.

Engineered for maximum performance and efficiency which will allow effortless break up of soil without bucking.

Our rotary tiller range provides easy garden maintenance for the toughest jobs. You will find they are incredibly easy to handle and their unique counter rotating tines allow any difficult job to be a breeze.

Product Overview:

Max tilling width (mm): 410

Max tilling depth (mm): 160

Wheels: Wheels and tyres

Side Discs: Unavailable

Foldable Handle: Not available

Height Adjustment Handle: Yes

Swing Handle: Not available

Counter-rotating tines: Yes

Unrivalled warranty

Our mowers are built better to last longer. That's why we can offer you a rock-solid warranty for domestic and professional use on our core range products, covering both parts and labour. The warranty also maintains the same value throughout the warranty period - meaning the last day of cover is exactly the same as the first.

*Subject to domestic use and following the service schedule

Function

Max tilling width (mm) 410

Max tilling depth (mm) 160

Forward speeds 3

Reverse speeds 1

Forward tool rotation speed (rpm) 0.15 - 1 m/s

Reverse tool rotation speed (rpm) 0.3 m/s

PTO rotation speed (low/high) (rpm) 131

Dimensions

Dimension (L x W x H) (mm) 1,465 x 465 x 1,010

Dry weight (kg) 51

ACC

Rotors/tines supplied Front counter rotation digging tines

Counter rotating tines Yes

Wheels Wheels & Tyres

Ridger Optional

Engine

Engine 4-stroke OHC

Engine model GXV57

Engine displacement (cc) 57

Engine net power (kW/rpm) 1.5/4,800

Fuel tank capacity (Litres) 0.78

Engine oil capacity (Litres) 0.26

Starter Recoil

Drive clutch Manual - expanding shoe

Transmission Constant mesh

Final transmission Wheels - constant mesh/Tines - chain & gear

Differential / side clutch Yes

Sound pressure at operators ears (dB(A)) 76

Guaranteed sound power level (dB(A)) 92

Vibration (m/sec²) 4.5

Handle

Height adjustable handle Yes
