Always a solid performance

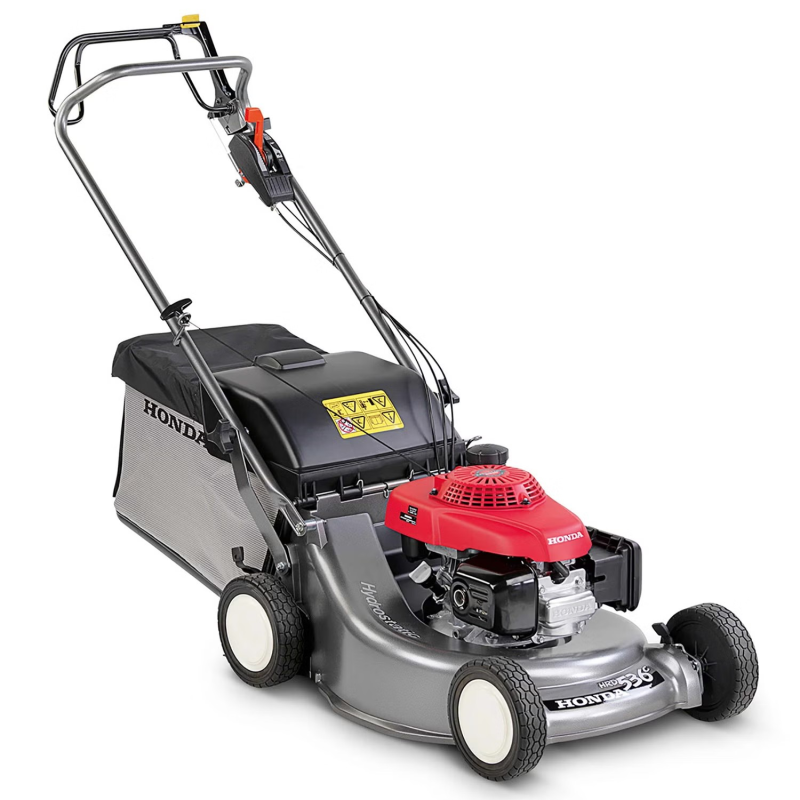

With its sturdy cast aluminium cutting deck and a reinforced cutting deck handle, the HRD is designed to master even the most demanding tasks over and over again. It is powered by our GXV 160 Pro motor (except HRD 536 TXEA), which has a robust cylinder liner and cast iron crankshaft that run on specially adapted bearings to increase their service life. It also features a two-part air filter and a large 1.5 liter fuel tank for long life.

Product Overview

Autochoke:The intelligent autochoke automatically regulates the air supply to the engine and ensures optimal starting and operating conditions.

Roto-Stop®: With the Roto-Stop® system you can stop the mower blades quickly and safely without having to switch off the engine. Ideal when you empty the grass bag, clear away obstacles or have to cross paths and driveways.

Pro engine: The professional four-stroke engine has overhead valves, ball-bearing crankshafts, steel cylinder liners and high-performance air filters.

Unrivalled warranty

Our products are built better to last longer. That's why we can offer you a rock-solid warranty for domestic and professional use on our core range products, covering both parts and labour. The warranty also maintains the same value throughout the warranty period - meaning the last day of cover is exactly the same as the first.

*Subject to domestic use and following the service schedule

Specifications

Function

Mower deck material Aluminum

Driving speed (m / s) Variable 0-1.4

Comfort knife coupling (Roto-Stop®) Yes

Mulch set Optional

Adjustment positions 7th

Grass bag volume (liters) 76

Guaranteed sound level (dB (A)) 98

Mowing time per 100 m² (min.: Sec.) 07:30

Dimensions

Empty weight (kg) 49

Length (mm) 1,655

width (mm) 574

Height (mm) 1,018

Cut-

Cutting width (cm) 53

Cutting height (mm) 14-76

Cutting height adjustment Individually

Engine

Engine 4-stroke OHV

Displacement (cm³) 163

Engine model GXV 160

Max. Continuous output (kW / min) 2.7 / 2,800

Fuel tank capacity (liter) 1.5

Drive Hydrostatic stepless
