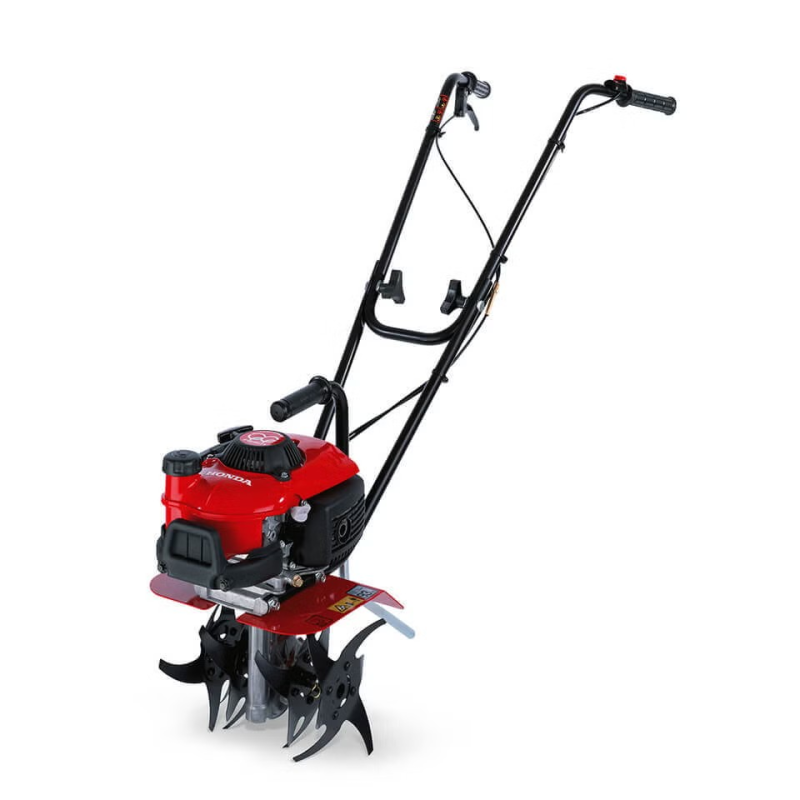

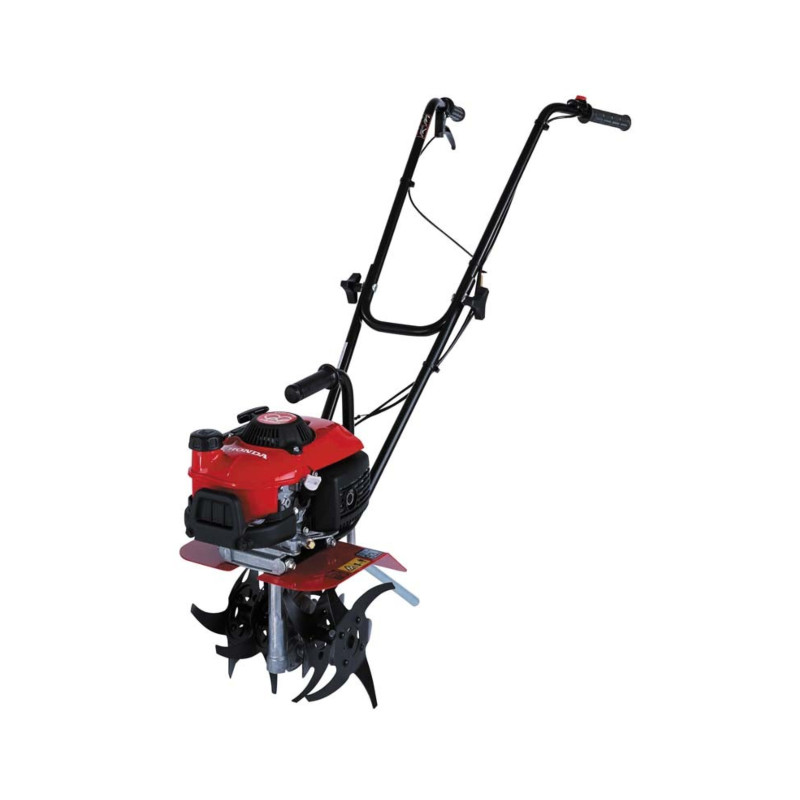

Product Overview

Perfect for light work on small plots.

Cultivating the soil on a small plot couldn't be easier. This range may be lightweight but they are still unbelievably sturdy.

These tillers really do make light work of your land. They are easy to use, transport and store away - just perfect for lighter jobs.

Product Overview:

Max tilling width (mm): 300

Max tilling depth (mm): 230

Wheels: Rear transport

Side Discs: Not available

Foldable Handle: Yes

Height Adjustment Handle: Not available

Swing Handle: Not available

Counter-rotating tines: Not available

Unrivalled warranty

Our products are built better to last longer. That's why we can offer you a rock-solid warranty for domestic and professional use on our core range products, covering both parts and labour. The warranty also maintains the same value throughout the warranty period - meaning the last day of cover is exactly the same as the first.

*Subject to domestic use and following the service schedule

Function

Max tilling width (mm) 300

Max tilling depth (mm) 230

Forward speeds 1

Forward tool rotation speed (rpm) 197 rpm

Dimensions

Dimension (L x W x H) (mm) 1,185 x 455 x 980

Dry weight (kg) 17

ACC

Rotors/tines supplied 4 x 4 tooth shredder tines

Wheels Optional Rear Transport

Border edger Optional

De-thatcher / scarifier Optional

Aerator Optional

Engine

Engine 4-stroke OHC

Engine model GXV50

Engine displacement (cc) 49

Engine net power (kW/rpm) 1.3/4,800

Fuel tank capacity (Litres) 0.35

Engine oil capacity (Litres) 0.3

Starter Recoil

Drive clutch Automatic - centrifugal

Transmission Worm gear

Sound pressure at operators ears (dB(A)) 79

Guaranteed sound power level (dB(A)) 93

Vibration (m/sec²) 5

Handle

Foldable handle Yes
