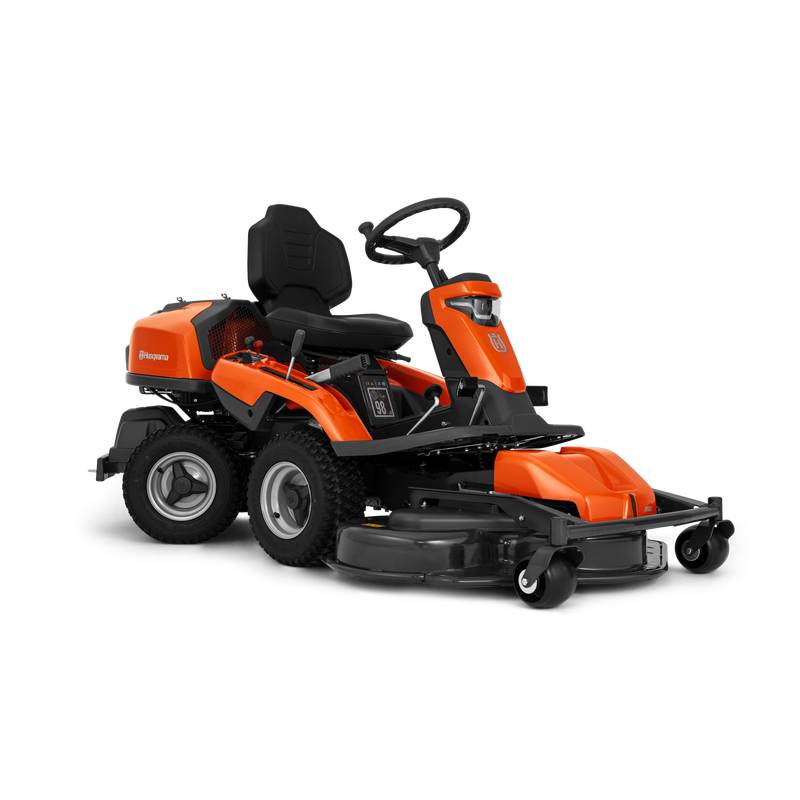

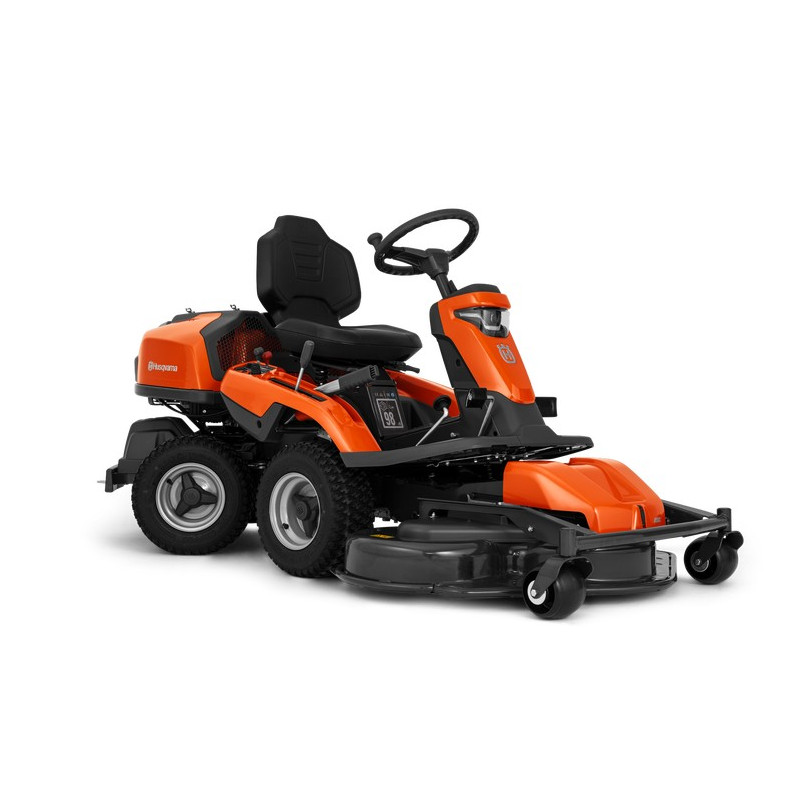

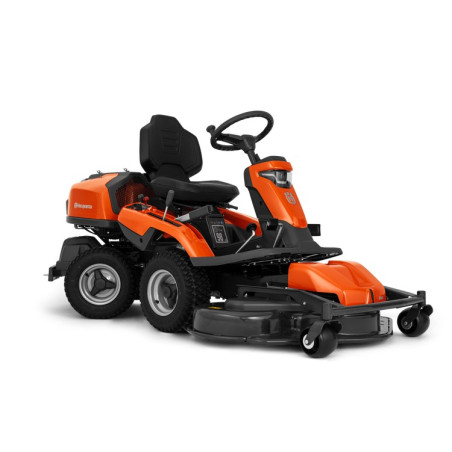

A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna Rider R 316TsX AWD is designed for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and all-wheel drive provide great control and traction in challenging terrain. The engine hood covering the powerful V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back for better visibility in dark conditions. Ready for Husqvarna Connect with Bluetooth®
In business over 200 years
DPD & Royal Mail Delivery
Pay & Collect in Branch, PayPal & Stripe Online
7 Branches across the South East
Machinery installation services
Vibration
R 316TsX AWD RIDER
Vibration level steering wheel
2.5 m/s²
Vibration level seat
0.7 m/s²
Cutting deck
R 316TsX AWD RIDER
Uncut circle
30 cm
Cutting width, min
94 cm
Cutting width, max
112 cm
Cutting height min
25 mm
Cutting height max
75 mm
Blade engagement
Automatic
Dimensions
R 316TsX AWD RIDER
Tyre dimensions, front
170/60-8
Tyre dimensions, rear
170/60-8
Wheelbase
88.7 cm
Ground clearance
90 mm
Base machine, length
200.8 cm
Base machine, width
88.7 cm
Base machine, height
118.1 cm
Gross weight towed
125 kg
Weight (excl. cutting equipment)
251 kg
Engine
R 316TsX AWD RIDER
Fuel Consumption
349 g/kWh
Net power at preset rpm Energy
9.7 kW
Net power at preset rpm
3,100 rpm
Engine brand
Kawasaki
Motor/engine manufacturer
Kawasaki
Engine name
FS481V
Cylinder displacement
603 cm³
Cylinders
2
Engine cooling
Air
Engine lubrication type
Full pressure
Oil filter
Yes
Product data
R 316TsX AWD RIDER
GTIN-13/EAN
7392930759947
Brand (Ext. Matl Group)
Husqvarna
Power Source
Petrol
Drive system
R 316TsX AWD RIDER
PTO (Power Take Off)
Belt-driven
Transmission type
Hydrostatic
Drive method
Dual pedal-operation
Speed forward max
9 km/h
Speed reverse max
8 km/h
Equipment
R 316TsX AWD RIDER
Seat suspension
Yes
Seat type
Premium
Hour meter type
Digital with pre-programmed service intervals
Seat material
Vinyl
Seat back height
High
Foldable seat
Yes
Steering wheel type
Comfort
Parking brake, type
Disc
Sound and noise
R 316TsX AWD RIDER
Sound pressure level at operators ear (LpA)
84 dB(A)
Sound power level, guaranteed (LWA)
99 dB(A)
Sound power level, measured
98 dB(A)
Battery
R 316TsX AWD RIDER
Battery capacity
24 Ah
Battery Chemistry
Lead-Acid
Emission
R 316TsX AWD RIDER
Exhaust emissions (CO₂ EU V)
851 g/kWh
